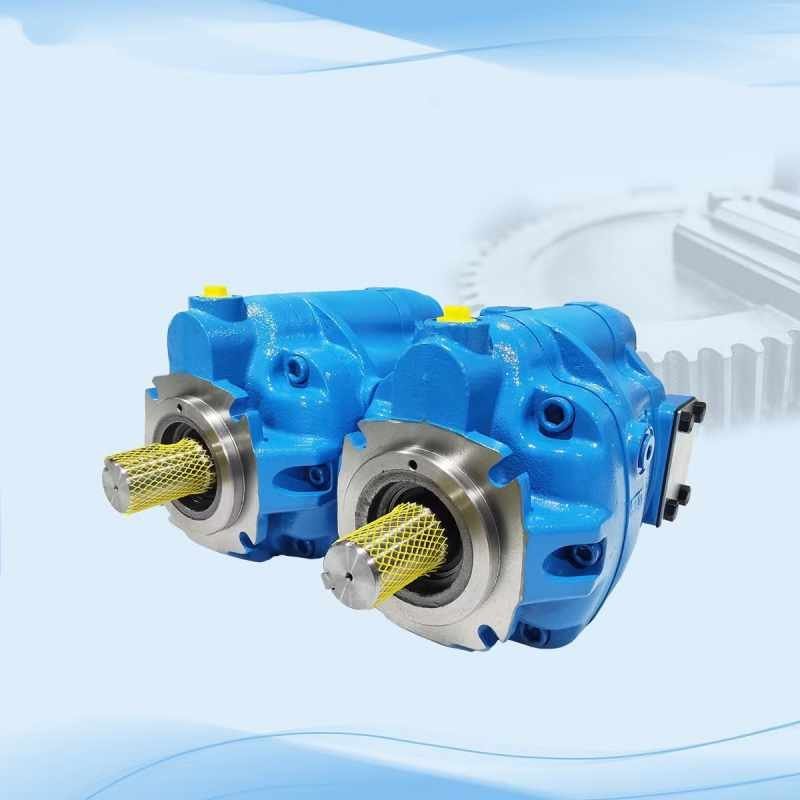

Vickers Medium-duty open-circuit piston pumps PVM018ER07CS01AAC2811000AA0A (spare parts avialable)

Additional information

brand	Vickers
Model Number	PVM018ER07CS01AAC2811000AA0A
Part Number	123AL00333A
weight	15 kg
Spare Parts	Valve plate, shaft, Cylinder Block, Ball guid, Retainer plate, piston, Servo piston, Swash plate, Bearing, Seal kit…

Condition: 100% new condition.
Availability: 12 units in stock in the warehouse.
Delivery time: 3-7 workdays after confirm your payment.
MOQ: 1 unit.
Payment term: 100% in advance by T/T, PayPal, Stripe, Credit Card or Western Union in USD.
Warranty: 1 year.
Shipping cost: The price not include freight cost. To confirm the specific freight cost, please contact us with the quantity and receiving address.
Packaging Method: Standard export and import packaging for free, plywood wooden cases or cartons.
Online support: 24-hour online customer service.
Refund term: 30 days money back guarantee.

PRODUCT: VAR DISP OCP PVM PUMP
DISPLACEMENT: 018 (18.0 cm3/r [1.1 in3/r] (280 bar MAX))
VALVE PLATE: E (INDUSTRIAL (1800 r/min MAX))
INPUT ROTATION: R (CLOCKWISE (RIGHTHAND))
INPUT SHAFT: 07 (SAE J744-22-4 SAE B 13T SPLINE (MODEL 018 028 045 AND 057))
Mounting Flange: C (SAE J744-101-2 (B 2-BOLT) (MODELS 018 028 045))
MAIN PORT LOCATION: S (SIDE)
PORT OPTIONS: 01 (SAE J514 TUBE PORTS SAE AUXILIARY PORTS)
PUMP SPECIAL FEATURES: AA (ADJUSTABLE MAX DISPLACEMENT STOP(CONTAINS SINGLE SHAFT SEAL))
CONTROL: C (PRESSURE AND FLOW COMPENSATOR WITH PLUGGED ORIFICE)
PRESSURE COMP SET: 28 (276-284 BAR [4002-4118 LBF/IN2])
FLOW COMP UNLD VLV RPC SET: 11 (10-12 BAR [145-174 LBF/IN2])
UNLD VLV TQ CONTROL SET: 00 (NONE)
COMP SPECIAL FEATURES: 0 (NONE)
AUXILIARY MOUNTING: A (SAE A 2-BOLT 9T SPLINE ALL MODELS)
Paint: A (BLACK [DEFAULT])
CUSTOMER IDENTIFICATION: 0 (NONE)
DESIGN CODE: A (A)
Brand: VICKERS BY DANFOSS (Vickers by Danfoss)
Code title: PVM (VICKERS VARIABLE DISPLACEMENT OPEN CIRCUIT PISTON PUMPS)
IPM FRAME SIZE: PVM “A” 018 (PVM Code A 18cc Pump)
Model Code 1: PVM018ER07CS01AAC2811000AA0A
