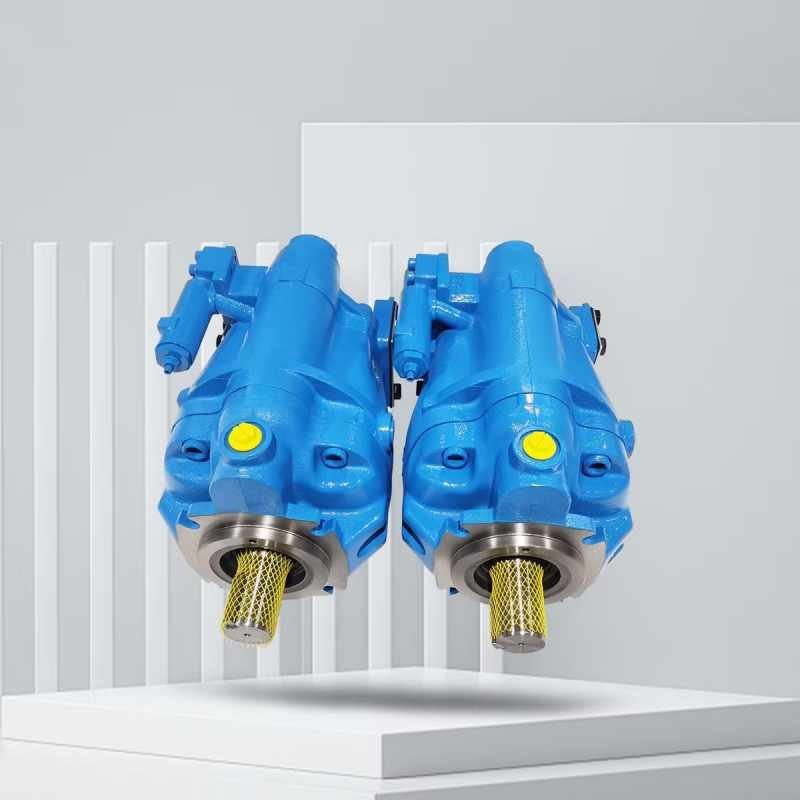

Vickers Medium-duty open-circuit piston pumps PVM020ER05CS01AAA07000001A0A (spare parts avialable)

Additional information

brand	Vickers
Model Number	PVM020ER05CS01AAA07000001A0A
Part Number	123AL02030A
weight	15 kg
Spare Parts	Valve plate, shaft, Cylinder Block, Ball guid, Retainer plate, piston, Servo piston, Swash plate, Bearing, Seal kit…

Condition: 100% new condition.
Availability: 12 units in stock in the warehouse.
Delivery time: 3-7 workdays after confirm your payment.
MOQ: 1 unit.
Payment term: 100% in advance by T/T, PayPal, Stripe, Credit Card or Western Union in USD.
Warranty: 1 year.
Shipping cost: The price not include freight cost. To confirm the specific freight cost, please contact us with the quantity and receiving address.
Packaging Method: Standard export and import packaging for free, plywood wooden cases or cartons.
Online support: 24-hour online customer service.
Refund term: 30 days money back guarantee.

DISPLACEMENT: 020 (21.1 cm3/r [1.29 in3/r] (230 bar MAX))
VALVE PLATE: E (INDUSTRIAL (1800 r/min MAX))
INPUT ROTATION: R (CLOCKWISE (RIGHTHAND))
INPUT SHAFT: 05 (SAE J744-22-1 SAE B STRAIGHT KEYED (MODEL 018 028 AND 045))
Mounting Flange: C (SAE J744-101-2 (B 2-BOLT) (MODELS 018 028 045))
MAIN PORT LOCATION: S (SIDE)
PORT OPTIONS: 01 (SAE J514 TUBE PORTS SAE AUXILIARY PORTS)
PUMP SPECIAL FEATURES: AA (ADJUSTABLE MAX DISPLACEMENT STOP(CONTAINS SINGLE SHAFT SEAL))
CONTROL: A (PRESSURE COMPENSATOR)
PRESSURE COMP SET: 07 (66-74 BAR [957-1073 LBF/IN2])
FLOW COMP UNLD VLV RPC SET: 00 (NONE)
UNLD VLV TQ CONTROL SET: 00 (NONE)
COMP SPECIAL FEATURES: 0 (NONE)
AUXILIARY MOUNTING: 1 (AUXILIARY MOUNT COVER PLATE)
Paint: A (BLACK [DEFAULT])
CUSTOMER IDENTIFICATION: 0 (NONE)
DESIGN CODE: A (A)
Code title: PVM (VICKERS VARIABLE DISPLACEMENT OPEN CIRCUIT PISTON PUMPS)
IPM FRAME SIZE: PVM “A” 020 (PVM Code A 20cc Pump)
Model Code 1: PVM020ER05CS01AAA07000001A0A
