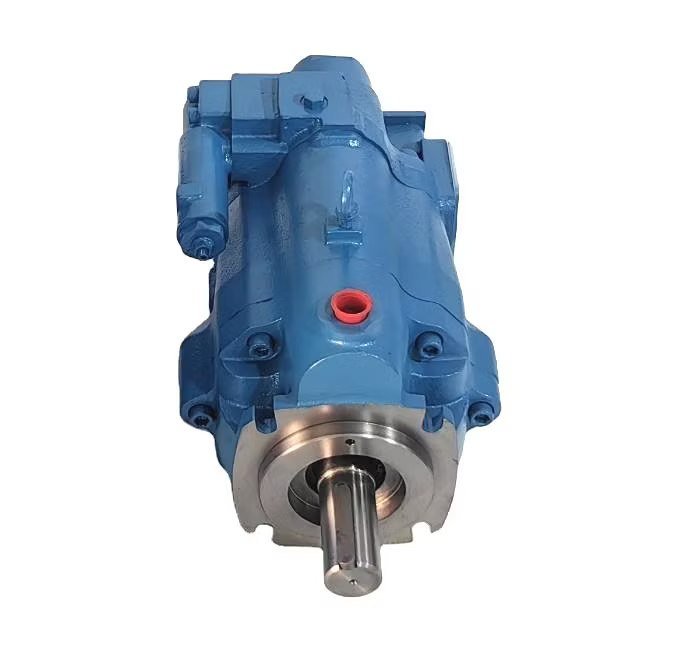

Vickers Medium-duty open-circuit piston pumps PVM057ER09GS2A07000000AAB-0000 (spare parts avialable)

Additional information

brand	Vickers
Model Number	PVM057ER09GS2A07000000AAB-0000
Part Number	11356978
weight	36 kg
Spare Parts	Valve plate, shaft, Cylinder Block, Ball guid, Retainer plate, piston, Servo piston, Swash plate, Bearing, Seal kit…

Condition: 100% new condition.
Availability: 12 units in stock in the warehouse.
Delivery time: 3-7 workdays after confirm your payment.
MOQ: 1 unit.
Payment term: 100% in advance by T/T, PayPal, Stripe, Credit Card or Western Union in USD.
Warranty: 1 year.
Shipping cost: The price not include freight cost. To confirm the specific freight cost, please contact us with the quantity and receiving address.
Packaging Method: Standard export and import packaging for free, plywood wooden cases or cartons.
Online support: 24-hour online customer service.
Refund term: 30 days money back guarantee.

CODE TITLE: PVM (VARIABLE DISPLACEMENT OPEN CIRCUIT PISTON PUMPS)
DISPLACEMENT: 057 (57.4 cm3/r [3.50 in3/r] (315 bar MAX))
VALVE PLATE: E (INDUSTRIAL (1800 r/min MAX))
INPUT ROTATION: R (CLOCKWISE (RIGHTHAND))
INPUT SHAFT: 09 (SAE J744-32-1, SAE C, STRAIGHT KEYED (MODEL 057,074,098 AND 131))
MOUNTING FLANGE: G (SAE J744-127-4 (C 4-BOLT)(MODELS 057,074,098 AND 131))
MAIN PORT LOCATION: S (SIDE)
PORT OPTIONS: 2 (SAE J518 FLANGE PORTS, SAE AUXILIARY PORTS)
CONTROL: A (PRESSURE COMPENSATOR)
PRESSURE COMP SETTING: 070 (070±4 bar [1015±58 lbf/in2][DEFAULT])
FLOW COMP SETTING: 00 (NONE)
POWER CONTROL SETTING: 000 (NONE)
AUXILIARY MOUNTING: A (SAE A, 2-BOLT, 9T SPLINE ALL MODELS)
PAINT: A (BLACK [DEFAULT])
DESIGN CODE: B (B)
DIFFERENTIATOR: – (-)
PUMP SPECIAL FEATURES: 00 (ADJUSTABLE MAX DISPLACEMENT STOP [DEFAULT])
COMPENSATOR SPECIAL FEATURES: 0 (NONE)
CUSTOMER IDENTIFICATION: 0 (NONE)
Brand: VICKERS BY DANFOSS (Vickers by Danfoss)
IPM FRAME SIZE: PVM “B” 057 (PVM Code B 57cc Pump)
Model Code 1: PVM057ER09GS2A07000000AAB-0000
