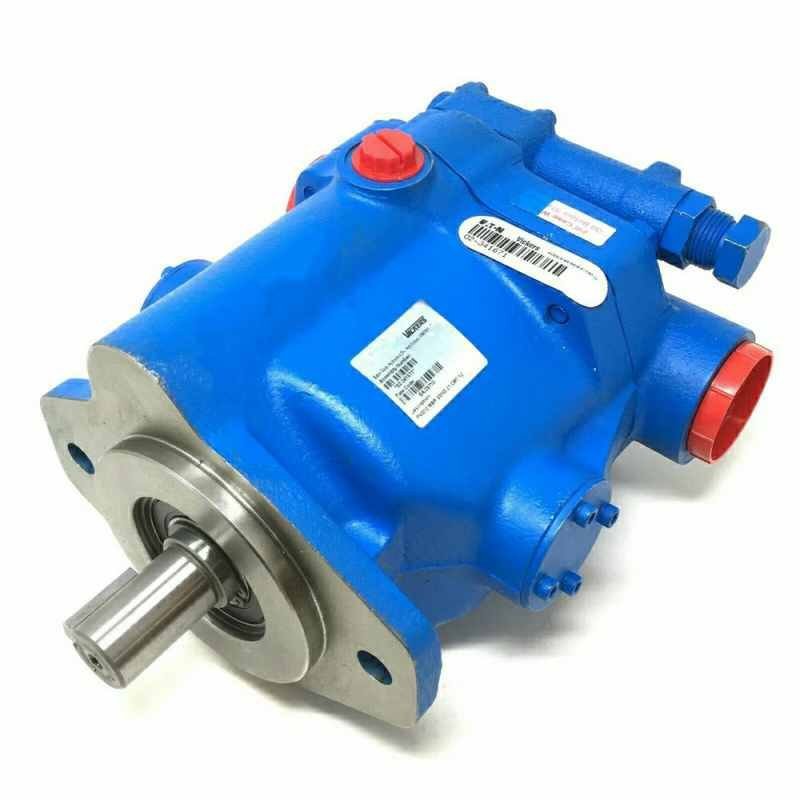

Vickers Medium-duty open-circuit piston pumps PVQ40AR01AA10G2100000100100CD0A (spare parts avialable)

Additional information

brand	Vickers
Model Number	PVQ40AR01AA10G2100000100100CD0A
Part Number	02-341927
weight	20.6 KG
Spare Parts	Valve plate, shaft, Cylinder Block, Ball guid, Retainer plate, piston, Servo piston, Swash plate, Bearing, Seal kit…

Condition: 100% new condition.
Availability: 12 units in stock in the warehouse.
Delivery time: 3-7 workdays after confirm your payment.
MOQ: 1 unit.
Payment term: 100% in advance by T/T, PayPal, Stripe, Credit Card or Western Union in USD.
Warranty: 1 year.
Shipping cost: The price not include freight cost. To confirm the specific freight cost, please contact us with the quantity and receiving address.
Packaging Method: Standard export and import packaging for free, plywood wooden cases or cartons.
Online support: 24-hour online customer service.
Refund term: 30 days money back guarantee.

CODE TITLE: PV (OPEN CIRCUIT PISTON PUMP)
DISPLACEMENT: Q40A (41.0 cm3/r [2.50 in3/r])
Input shaft rotation: R (RIGHT-HAND ROTATION (CW))
FRONT MOUNTING & INPUT SHAFT: 01 (2 BOLT B (SAE J744-101-2) WITH 22.2 [.88] DIA STRAIGHT KEY SHAFT (SAE J744-22-1) (KEY INCLUDED))
MAIN PORT LOCATION & SIZE: AA (SIDE PORTS SUCTION – 1.875-12 UN-2B SAE O-RING PORT PRESSURE – 1.3125-12 UN-2B SAE O-RING PORT)
Drain port size & location: 1 (.875-14 UNF-2B SAE O-RING PORT – TOP (D1) & BOTTOM PLUGGED (D2))
DIAGNOSTIC PRESSURE PORT: 0 (NO DIAGNOSTIC PRESSURE PORT)
CONTROLLER TYPE: G (ADJUSTABLE PRESSURE COMPENSATOR)
PR COMP UNLOADING VALVE STG: 21 (203.4-210.3 bar [2950-3050 lbf/in2])
FLOW COMP STG OR UV STANDBY: 00 (NO FLOW COMPENSATOR SETTING)
SECONDARY COMPENSATOR STETTING: 00 (NO SECONDARY COMPENSATOR SETTING)
Control special features: 0 (NO SPECIAL FEATURES)
Maximum displacement option: 1 (STANDARD DISPLACEMENT)
AUXILIARY MOUNTING & OUTPUT S: 00 (NO AUXILIARY MOUNTING OR OUTPUT SHAFT)
SHAFT SEALS: 1 (STANDARD SHAFT SEAL (FLUOROCARBON))
SPECIAL FEATURES: 00 (NO SPECIAL FEATURES)
PAINT: CD (BLUE PRIMER)
CUSTOMER & UNIT IDENTIFICATION: 0 (NONE – MARK ASSEMBLY NUMBER, COMPLETE MODEL CODE AND BUILD DATE CODE ON PLATE)
DESIGN CODE: A (FIRST DESIGN)
Brand: VICKERS BY DANFOSS (Vickers by Danfoss)
IPM FRAME SIZE: PVQ 40 (PVQ 40cc Pump)
Model Code 1: A
