Wilden Diaphragm Pump A2P/KKPPP/WFS/WF/KTV/0263. 136

02-13258

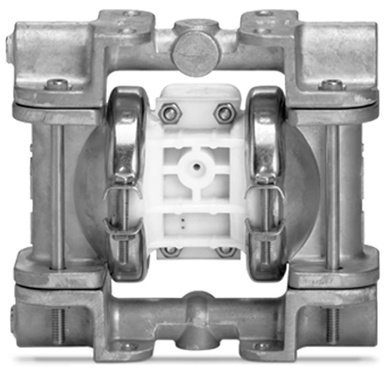

Wilden 02-13258 Accu-Flo Electronic Control 1″ Clamped Plastic Air Operated Double Diaphragm Pump (A2P), MODEL: A2P/KKPPP/WFS/WF/KTV/0263. 136 lpm (36 gpm) Max Flow, 25 mm (1″) ANSI Flanged Suction & Discharge. PVDF Wetted Parts, Outer Piston & Seats, Polypropylene Air Chamber, Center Block & Air Valve, PTFE-Encapsulated FKM O-Rings, Wil-Flex Traditional Diaphragms & Balls. A PSG Dover Brand Product.

Air Chamber Polypropylene
Air Distribution System Accu‑Flo w/ Pro‑Flo Base
Air Inlet 1/4″ FNPT
Center Block Polypropylene
Connection Type ANSI
Construction Clamped
Diaphragm Wil-Flex (Santoprene)
Diaphragm Type Traditional
Discharge NPT (Inches) 25 mm (1″)
Discharge Volume Per Cycle 0.12 L (0.030 gal)
Material Plastic
Maximum Flow (GPM) 136 lpm (36 gpm)
Maximum Working Pressure (PSIG) 8.6 bar (125 psi)

Max Suction Lift 6.2 m (20.4′) Dry, 9 m (29.5′) Wet
Model Number A2P/KKPPP/WFS/WF/KTV/0263
Model Series A2P
Outer Piston PVDF
Size 1″
Solids (Inches) 3.2 mm (1/8″)
Special Configuration 0263 A2 Plastic, Accu-Flo, 24V DC coil
Suction NPT (Inches) 25 mm (1″)
Valve Balls Wil-Flex (Santoprene)
Valve / Seat / O-Ring Polypropylene Air Valve / PVDF Seat / PTFE-Encapsulated FKM O-Rings
Valve Type Ball Valve
Wetted Parts PVDF
