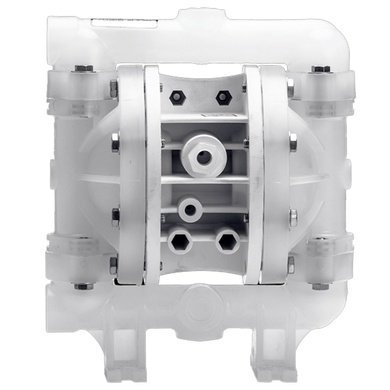

Wilden Diaphragm Pump P100/KKPPP/THU/TF/KTV

01-11052

Wilden 01-11052 Pro-Flo 1/2″ (13mm) Bolted Plastic Air Operated Double Diaphragm AODD Pump (P100), MODEL: P100/KKPPP/THU/TF/KTV. 57 lpm (15 gpm) Max Flow, 13 mm (1/2″) NPT Suction & Discharge. PVDF Wetted Parts, Outer Piston & Seats, Polypropylene Air Chamber, Center Block & Air Valve, PTFE-Encapsulated FKM O-Rings, PTFE w/High Temp Buna-N Backup Reduced-Stroke Diaphragm, PTFE Balls. 01-9985-20 ADS Repair Kit, 01-9815-55-211 Wet End Kit Available to order. A PSG Dover Brand Product.

Air Chamber Polypropylene
Air Distribution System Pro-Flo
Air Inlet 1/4″ FNPT
Center Block Polypropylene
Connection Type NPT
Construction Bolted
Diaphragm PTFE w/High Temp Buna-N Backup
Diaphragm Type Reduced-Stroke
Discharge NPT (Inches) 13 mm (1/2″)
Discharge Volume Per Cycle 0.10 L (0.027 gal)
Material Plastic
Maximum Flow (GPM) 57 lpm (15 gpm)
Maximum Working Pressure (PSIG) 8.6 bar (125 psi)

Max Suction Lift 4.5 m (14.7′) Dry, 9.3 (30.6′) Wet
Model Number P100/KKPPP/THU/TF/KTV
Model Series P100
Outer Piston PVDF
Product Notes 01-9985-20 ADS Repair Kit, 01-9815-55-211 Wet End Kit Available to order.
Size 1/2″
Solids (Inches) 1.6 mm (1/16″)
Suction NPT (Inches) 13 mm (1/2″)
Valve Balls PTFE
Valve / Seat / O-Ring Polypropylene Air Valve / PVDF Seat / PTFE-Encapsulated FKM O-Rings
Valve Type Ball Valve
Wetted Parts PVDF
