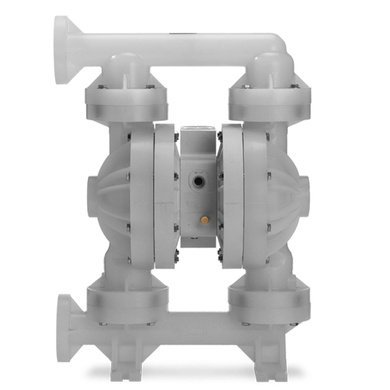

Wilden Diaphragm Pump PS400/PPPPP/TSS/TF/PTV/0100

04-13938

Wilden 04-13938 Pro-Flo SHIFT 1-1/2″ (38mm) Bolted Plastic Air Operated Double Diaphragm AODD Pump (PS400), MODEL: PS400/PPPPP/TSS/TF/PTV/0100. 447 lpm (118 gpm) Max Flow, 38 mm (1-1/2″) ANSI Flanged Suction & Discharge. Polypropylene Wetted Parts, Outer Piston, Air Chamber, Center Block, Air Valve & Seats, PTFE-Encapsulated FKM O-Rings, PTFE w/Saniflex Backup Full Stroke IPD Diaphragm, PTFE Balls. 04-9994-20 ADS Repair Kit, 04-9815-55-202 Wet End Kit Available to order. A PSG Dover Brand Product.

Air Chamber Polypropylene
Air Distribution System Pro-Flo Shift
Air Inlet 3/4″ FNPT
Center Block Polypropylene
Connection Type ANSI
Construction Bolted
Diaphragm PTFE w/Saniflex Backup
Diaphragm Type Full Stroke IPD
Discharge NPT (Inches) 38 mm (1-1/2″)
Discharge Volume Per Cycle 1.0 L (0.27 gal)
Material Plastic
Maximum Flow (GPM) 447 lpm (118 gpm)
Maximum Working Pressure (PSIG) 8.6 bar (125 psi)
Max Suction Lift 5.6 m (18.4′) Dry, 9.0 m (29.5′) Wet

Model Number PS400/PPPPP/TSS/TF/PTV/0100
Model Series PS400
Outer Piston Polypropylene
Product Notes 04-9994-20 ADS Repair Kit, 04-9815-55-202 Wet End Kit Available to order.
Size 1-1/2″
Solids (Inches) 6.4 mm (1/4″)
Special Configuration 0100 Wil-Gard II 110V
Suction NPT (Inches) 38 mm (1-1/2″)
Valve Balls PTFE
Valve / Seat / O-Ring Polypropylene Air Valve / Polypropylene Seat / PTFE-Encapsulated FKM O-Rings
Valve Type Ball Valve
Wetted Parts Polypropylene
