Wilden Diaphragm Pump T8/AAAAB/TSU/TF/ATF

08-14097

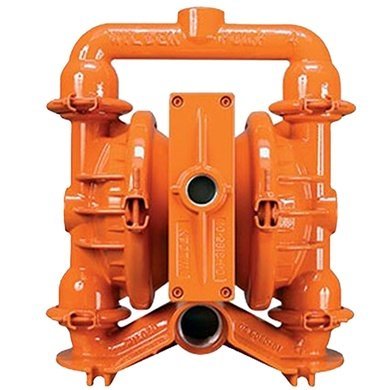

Wilden 08-14097 Turbo-Flo 2″ Clamped Metal Air Operated Double Diaphragm Utility Pump (T8), MODEL: T8/AAAAB/TSU/TF/ATF. 534 lpm (141 gpm) Max Flow, 51 mm (2″) NPT Suction & Discharge. Aluminum Wetted Parts, Outer Piston, Air Chamber, Center Block & Seats, Brass Air Valve, PTFE O-Rings & Balls, PTFE w/Saniflex Backup Reduced-Stroke Diaphragms. 08-9980-07 ADS Repair Kit, 08-9804-55-203 Wet End Kit, 71-7540 SD Dampener, 04-8345-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

Air Chamber Aluminum
Air Distribution System Turbo-Flo
Air Inlet 3/4″ FNPT
Center Block Aluminum
Connection Type NPT
Construction Clamped
Diaphragm PTFE w/Saniflex Backup
Diaphragm Type Reduced-Stroke
Discharge NPT (Inches) 51 mm (2″)
Discharge Volume Per Cycle 1.51 L (0.40 gal)
Material Metal
Maximum Flow (GPM) 534 lpm (141 gpm)
Maximum Working Pressure (PSIG) 8.6 bar (125 psi)

Max Suction Lift 3.7 m (12′) Dry, 9.5 m (31′) Wet
Model Number T8/AAAAB/TSU/TF/ATF
Model Series T8
Outer Piston Aluminum
Product Notes 08-9980-07 ADS Repair Kit, 08-9804-55-203 Wet End Kit, 71-7540 SD Dampener, 04-8345-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order.
Size 2″
Solids (Inches) 6.4 mm (1/4″)
Suction NPT (Inches) 51 mm (2″)
Valve Balls PTFE
Valve / Seat / O-Ring Brass Air Valve / Aluminum Seat / PTFE O-Rings
Valve Type Ball Valve
Wetted Parts Aluminum
