Wilden Diaphragm Pump XPS1530/WWAAA/TWS/TF/MTF/0504

15-12888

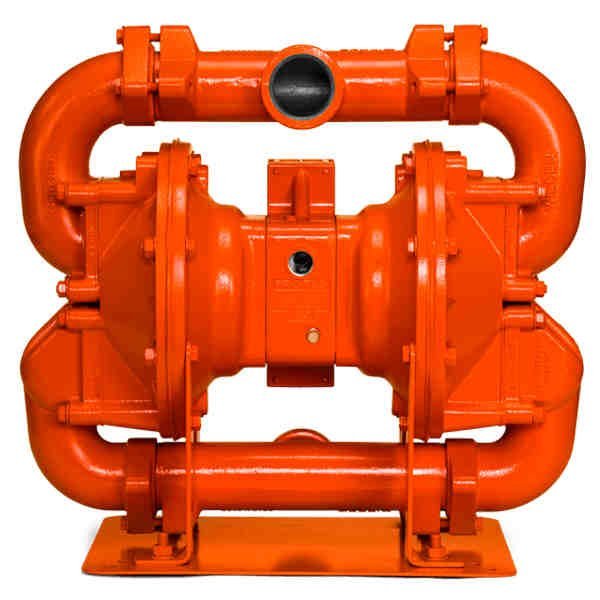

Wilden 15-12888 Pro-Flo SHIFT 3″ (76mm) Bolted Metal Air Operated Double Diaphragm AODD Pump (PS1530), ATEX Compliant, MODEL: XPS1530/WWAAA/TWS/TF/MTF/0504. 874 lpm (231 gpm) Max Flow, 76 mm (3″) DIN Flanged Suction & Discharge. Ductile Iron Wetted Parts & Outer Piston, Aluminum Air Chamber, Center Block & Air Valve, Mild Steel Seat, PTFE O-Rings & Balls, PTFE w/Wil-Flex Backup Full Stroke IPD Diaphragm. 15-9993-99 ADS Repair Kit, 15-9824-55-201 Wet End Kit Available to order. A PSG Dover Brand Product.

Air Chamber Aluminum
Air Distribution System Pro-Flo Shift
Air Inlet 3/4″ FNPT
Center Block Aluminum
Connection Type DIN
Construction Bolted
Diaphragm PTFE w/Wil-Flex Backup
Diaphragm Type Full Stroke IPD
Discharge NPT (Inches) 76 mm (3″)
Discharge Volume Per Cycle 4.8 L (1.26 gal)
Material Metal
Maximum Flow (GPM) 874 lpm (231 gpm)
Maximum Working Pressure (PSIG) 8.6 bar (125 psi)
Max Suction Lift 5.9 m (19.5′) Dry, 9.7 m (31.7′) Wet

Model Number XPS1530/WWAAA/TWS/TF/MTF/0504
Model Series XPS1530
Outer Piston Ductile Iron
Product Notes 15-9993-99 ADS Repair Kit, 15-9824-55-201 Wet End Kit Available to order.
Size 3″
Solids (Inches) 12.7 mm (1/2″)
Special Configuration 0504 DIN flange
Suction NPT (Inches) 76 mm (3″)
Type ATEX
Valve Balls PTFE
Valve / Seat / O-Ring Aluminum Air Valve / Mild Steel Seat / PTFE O-Rings
Valve Type Ball Valve
Wetted Parts Ductile Iron
