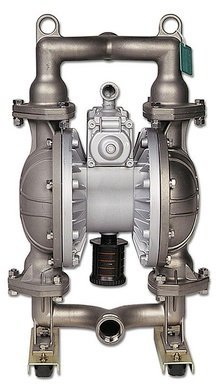

Yamada Diaphragm Pump DP-40BSH-HD

Yamada Diaphragm Pump DP-40BSH-HD

US$4,643.31

Additional information

brand

weight

48.5KG
Model Number

Contact us for formal quotation
  • Condition: 100% new condition.
  • Availability: 12 units in stock in the warehouse.
  • Delivery time: 3-7 workdays after confirm your payment.
  • MOQ: 1 unit.
  • Payment term: 100% in advance by T/T, PayPal, Stripe, Credit Card or Western Union in USD.
  • Warranty: 1 year.
  • Shipping cost: The price not include freight cost. To confirm the specific freight cost, please contact us with the quantity and receiving address.
  • Packaging Method: Standard export and import packaging for free, plywood wooden cases or cartons.
  • Online support: 24-hour online customer service.
  • Refund term: 30 days money back guarantee.

DP-40BSH-HD

Yamada Pumps DP-40BSH-HD Type, Model 854361 DP-40 XDP Series, Air Operated Double Diaphragm Pump, Hytrel Diaphragm, Hytrel / Buna N Flat Check Valve / O-Rings, Stainless Steel (316) Material, 107 GPM Max Flow, 1-1/2″ Fluid Port, 1/2″ Female NPT (includes ball valve) Air Inlet, 3/4″ Female NPT (includes silencer) Air Exhaust, Aluminum Air Motor

Actual Weight 107
Air Exhaust 3/4″ Female NPT (includes silencer)
Air Inlet 1/2″ Female NPT (includes ball valve)
Air Supply Pressure 20 to 100 PSI (1.4 to 7 kgf/cm²)
Diaphragm Hytrel
Discharge Volume Per Cycle 0.79 gallons (3.0 liters)
Fluid Port 1-1/2″
Liquid Temperature 248°F (120°C)
Material 316 Stainless Steel
Max Cycles Per Minute 148

Maximum Flow (GPM) 107
Max Suction Lift 18 Feet
Model Number 854361
Model Series DP-40 XDP
Motor Aluminum Air Motor
Outside Dimension 16.18″ W x 27.75″ H
Solids (Inches) 9/32″ (7 mm)
Type 854361
Valve / Seat / O-Ring Hytrel / Buna-N
