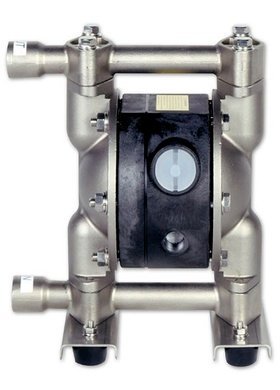

Yamada Diaphragm Pump NDP-15BSC

NDP-15BSC

Yamada Pumps NDP-15BSC Type, Model 851962 NDP-15 Series, Air Operated Double Diaphragm Pump, Neoprene Diaphragm, Neoprene Flat Check Valve / O-Rings, Stainless Steel Ball Valve (316) Material, 13.5 GPM Max Flow, 1/2″ NPT Fluid Port, 1/4″ Female NPT (includes ball valve) Air Inlet, 3/8″ Female NPT (includes silencer) Air Exhaust, Ryton® Air Motor, 5 Feet Max Suction Lift

Actual Weight 16
Air Exhaust 3/8″ Female NPT (includes silencer)
Air Inlet 1/4″ Female NPT (includes ball valve)
Air Supply Pressure 20 to 100 PSI (1.4 to 7 kgf/cm²)
Diaphragm Neoprene
Discharge Volume Per Cycle 0.034 gallons (128 cc)
Fluid Port 1/2″ NPT
Liquid Temperature 180°F (82°C) Max
Material Stainless Steel Ball Valve (316)
Max Cycles Per Minute 400

Maximum Flow (GPM) 13.5 GPM
Max Suction Lift 5 Feet
Model Number 851962
Model Series NDP-15 Models
Motor Ryton Air Motor
Solids (Inches) 1/32″ (1 mm)
Type 851962
Valve / Seat / O-Ring Neoprene
