Yamada Diaphragm Pump NDP-20BAE-HP

Yamada Diaphragm Pump NDP-20BAE-HP

US$1,526.34

Additional information

brand

weight

10.9KG
Model Number

Contact us for formal quotation
  • Condition: 100% new condition.
  • Availability: 12 units in stock in the warehouse.
  • Delivery time: 3-7 workdays after confirm your payment.
  • MOQ: 1 unit.
  • Payment term: 100% in advance by T/T, PayPal, Stripe, Credit Card or Western Union in USD.
  • Warranty: 1 year.
  • Shipping cost: The price not include freight cost. To confirm the specific freight cost, please contact us with the quantity and receiving address.
  • Packaging Method: Standard export and import packaging for free, plywood wooden cases or cartons.
  • Online support: 24-hour online customer service.
  • Refund term: 30 days money back guarantee.

NDP-20BAE-HP

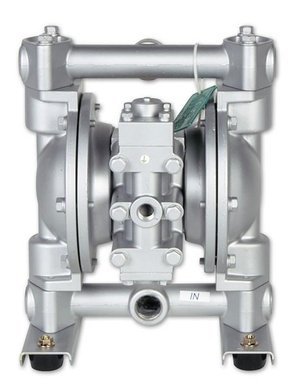

Yamada NDP-20BAE-HP NDP-20 Series 2:1 High Pressure Air Operated Double Diaphragm Pump, Model 851516-HP. Aluminum Body with Ball Valve, EPDM Diaphragm & Ball Materials, EPDM O-Rings. 3/4″ FNPT Inlet & Outlet.

Air Inlet 1/4″ FNPT
Air Supply Pressure 20 – 100 PSI (1.4 – 7 kfg/cm)
Diaphragm EPDM
Discharge NPT (Inches) 3/4″ FNPT
Discharge Volume Per Cycle 0.163 gallons (615 cc)
Fluid Port 3/4″
Material Aluminum
Max Suction Lift 18′

Model Number 851516-HP
Motor Aluminum
Solids (Inches) 1/16″ (2mm)
Suction NPT (Inches) 3/4″ FNPT
Type Ball Valve
Valve Balls EPDM
Valve / Seat / O-Ring EPDM
