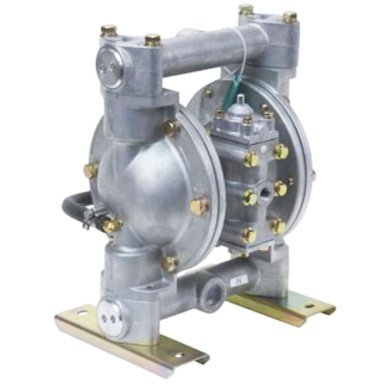

Yamada Diaphragm Pump NDP-25BPS

US$1,376.58

Additional information

brand	Yamada
weight	15.4KG
Model Number	NDP-25BPS

Condition: 100% new condition.
Availability: 12 units in stock in the warehouse.
Delivery time: 3-7 workdays after confirm your payment.
MOQ: 1 unit.
Payment term: 100% in advance by T/T, PayPal, Stripe, Credit Card or Western Union in USD.
Warranty: 1 year.
Shipping cost: The price not include freight cost. To confirm the specific freight cost, please contact us with the quantity and receiving address.
Packaging Method: Standard export and import packaging for free, plywood wooden cases or cartons.
Online support: 24-hour online customer service.
Refund term: 30 days money back guarantee.

NDP-25BPS

Yamada NDP-25BPS 852704, Air Operated Double Diaphragm Pump with Santoprene Diaphragm. Santoprene / EPDM Valve & O-Rings, Polypropylene (PPG) Material, 46.2 GPM Max Flow, 1″ Female NPT Fluid Port, 3/8″ Female NPT (includes ball valve) Air Inlet, 3/4″ Female NPT (includes silencer) Air Exhaust, Aluminum Air Motor, & 18 Feet Max Suction Lift.

Air Exhaust 3/4″ Female NPT (includes silencer)
Air Inlet 3/8″ Female NPT (includes ball valve)
Air Supply Pressure 20 to 100 PSI (1.4 to 7 kgf/cm²)
Diaphragm Santoprene
Discharge Volume Per Cycle 0.23 gallons (862 cc)
Fluid Port 1″ Female NPT
Liquid Temperature 180°F (82°C) Max
Material Polypropylene (PPG)
Max Cycles Per Minute 210

Maximum Flow (GPM) 46.2 GPM
Max Suction Lift 18 Feet
Model Number 852704
Model Series NDP-25 Models
Motor Aluminum Air Motor
Solids (Inches) 3/16″ (4.8 mm)
Valve / Seat / O-Ring Santoprene / EPDM

Yamada Diaphragm Pump NDP-25BPS
