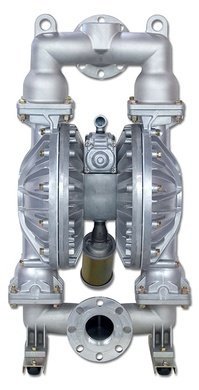

Yamada Diaphragm Pump NDP-80BAS

NDP-80BAS

Yamada Pumps NDP-80BAS Type, Model 852725 NDP-80 Series, Air Operated Double Diaphragm Pump, Santoprene Diaphragm, Santoprene/EPDM Flat Check Valve / O-Rings, Aluminum – Combination fluid port: ANSI Flange with 3″ tapped FNPT (ADC-12) Material, 215 GPM Max Flow, 3″ (NPT or ANSI Flange) Fluid Port, 3/4″ Female NPT (includes ball valve) Air Inlet, 1″ Female NPT (includes silencer) Air Exhaust, Aluminum Air Motor

Actual Weight 166
Air Exhaust 1″ Female NPT (includes silencer)
Air Inlet 3/4″ Female NPT (includes ball valve)
Air Supply Pressure 20 to 100 PSI (1.4 to 7 kgf/cm²)
Diaphragm Santoprene
Discharge Volume Per Cycle 2.25 gallons (8.5 liters)
Fluid Port 3″ (NPT or ANSI Flange)
Liquid Temperature 180°F (82°C) Max
Material Aluminum – Combination fluid port: ANSI Flange with 3″ tapped FNPT (ADC-12)
Max Cycles Per Minute 95

Maximum Flow (GPM) 215
Max Suction Lift 19 feet
Model Number 852725
Model Series NDP-80 Models
Motor Aluminum Air Motor
Outside Dimension 20.43″ W x 40.75″ H
Solids (Inches) 13/32″ (10 mm)
Type 852725
Valve / Seat / O-Ring Santoprene / EPDM
