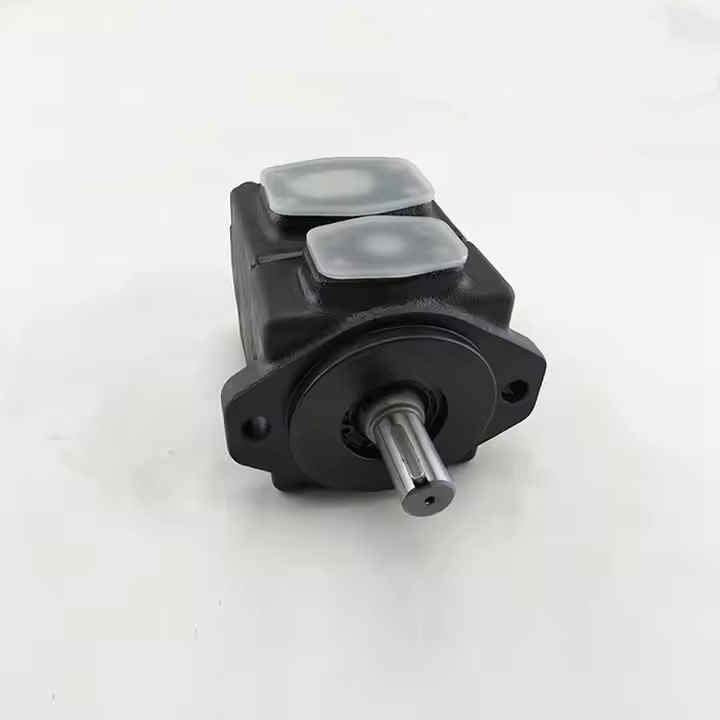

Yuken Vane Pump V2R34-116-136-F-RAAA-31

Model Number Designation
Special Seals
F:For phosphateester type fluids (Om it if not required)
Series Number
PV2R12
PV2R13
PV2R14
PV2R23
PV2R24
PV2R33
PV2R34
Nominal Displacement cm /rev
PV2R12： 6, 8，10, 12, 14, 17,19, 23, 25, 31; 26, 33, 41, 47, 53, 59, 65
PV2R13： 6, 8 ,10, 12, 14, 17, 19, 23, 25, 31; 76, 94, 116
PV2R14： 6, 8, 10, 12, 14, 17 ,19, 23; 136, 153, 184, 200, 237
PV2R23： 41, 47, 53, 59 , 65; 52, 60, 66, 76 94, 116
PV2R24： 26, 33, 41, 47; 136, 153, 184, 200, 237
PV2R33： 76, 94, 116; 76, 94, 116
PV2R34： 52, 60, 66, 76, 94, 116; 136, 153, 184, 200, 237
Mounitng：
L: Foot Mtg.
F: Flange Mtg.
Shaft Rotation：
R: Clockwise (Normal)
Small Volume Pump Discharge Port Position：
E: Left 45° Upwards (Normal)
A: Upwards (Normal)
large Volume Pump Discharge Port Position：
A: Upwards (Normal)
Suction Port Position： A: Upwards (Normal)
Design Number: 42，41，31，32
